How to Change the Bluetooth 5.0 EQ Settings
There have a built-in equalizer in Tinysine Bluetooth 5.0 module. If you have the CSR USB-SPI programmer, You can change the equalizer settings by yourself. TSA6175 module use CSR8675 bluetooth chip. It's need a new version software to change the EQ settings. This tutorial will teach you how to set it.
Hardware and Software required:
- Tag-Connect line Kit
- CSR USB-SPI programmer
- Download Bluesuite2.5.0 and install it
- Download ADK_CSR867x.WIN4.3.1.5 and install it
Step1:
Connect the CSR USB-SPI programmer and Tag-Connect line with an AudioB Plus convert board, then connect CSR USB-SPI to your computer by a mini USB cable and windows will auto detect it and install the drivers.
Step2:

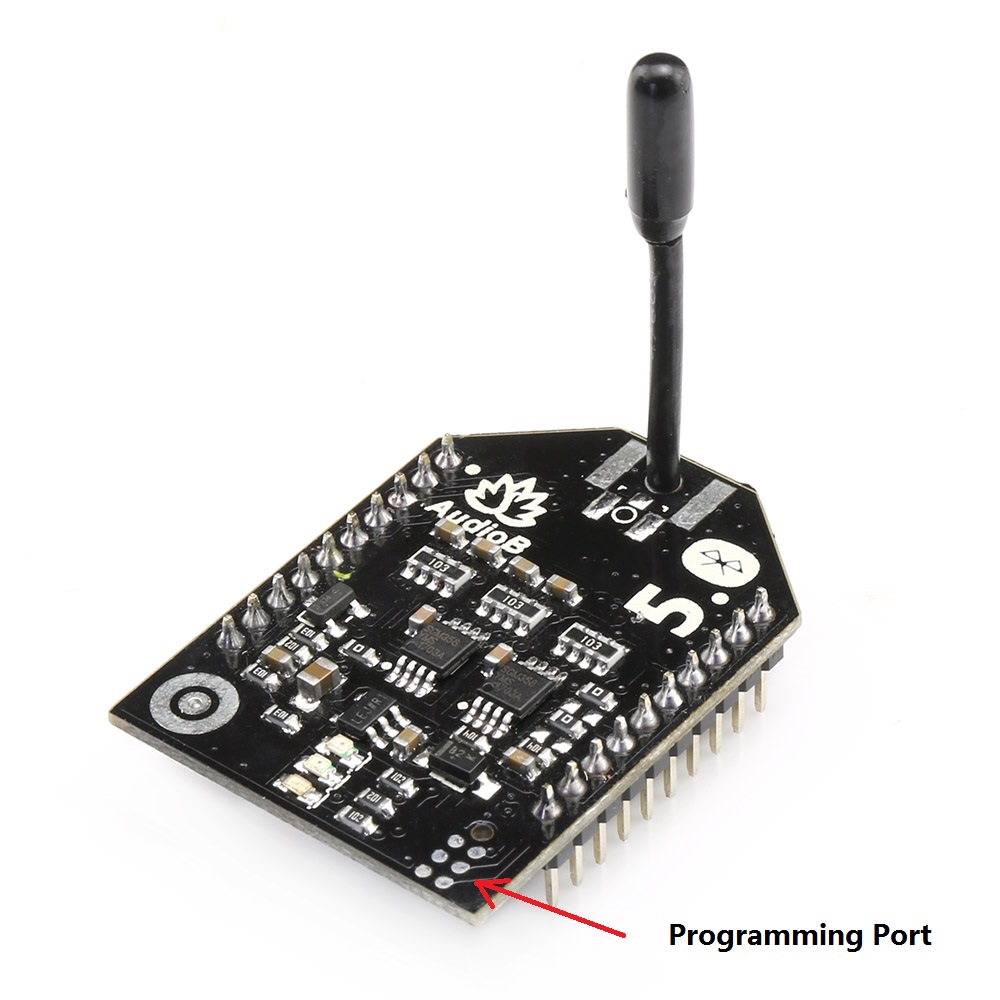

Connect TC2050-IDC-NL’s connector to AudioB5 programming port. You need to locate the single steel alignment pin of the connector into the single hole of the PCB footprint, then press down softly to engage the spring-pin contacts. Make sure the first 6 pins have a good contact with the corresponding pads. Then the blue led and red led will flash alternately.
Step3:
Let your smartphone connected to the bluetooth module and play the music. You can hear music out from the speakers. And then you can open the "CSRA64xxx Universal Front End" software.
Step4:
DSP->Connection. Select USB SPI and connect it.
Step5: Click "Monitor DSP" button.
Step6:
There have many settings can be changed in the following page. Here is we click "User PEQ" to enter the EQ value setting page.
Step7:
In the setting page, Unclick the Flat option. Select "Bass Boost" in the Presets. Then click "Apply" button. You will hear the Bass boost works immediately. You can also try the other options.
Step8:
Click "Download Params" to store the new settings to the bluetooth module. Then you can remove the programmer and use the Bluetooth audio amplifier with new EQ values.
