AudioB Bluetooth 5.0 Audio Module - TSA6179
20 or more $11.50

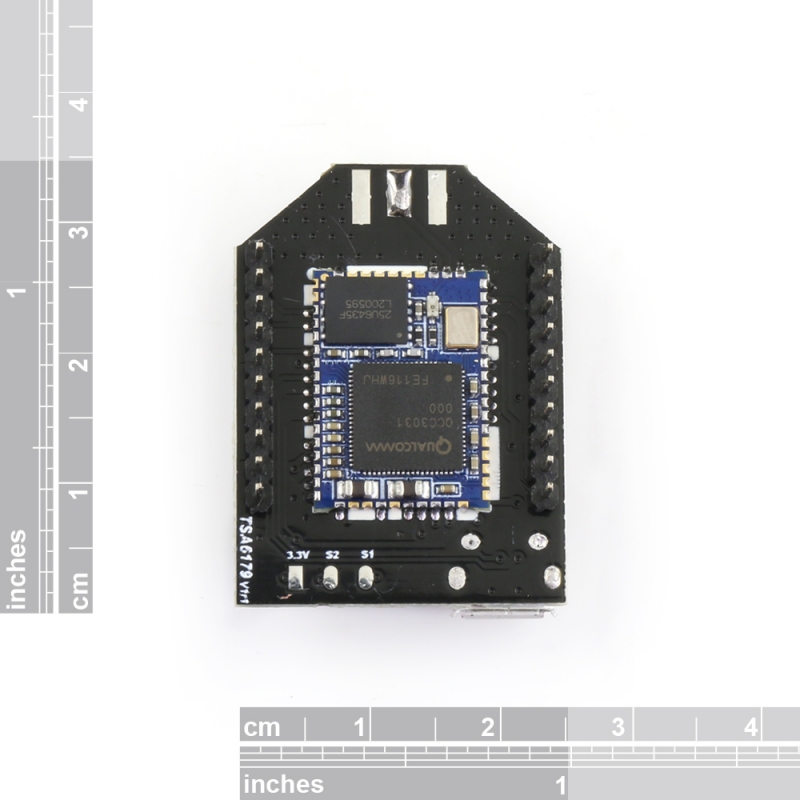

TSA6179 is a Bluetooth 5.0 stereo audio module, based on QCC3031. We breakout pins to 2x10 2mm space male pins. You can integrate it to your project easily. This module has a micro USB port, which means you can change the firmware by yourself, two buttons on the module can be configured to have different functions as you need.
Single-ended signal output
Single-ended signal output with headphone/small speakers
Differential signal output
TSA6179 provides 2 firmwares to choose: TWS mode and Party mode (Multipoint), you can also update the firmware via micro USB port.
- TWS mode : module works as a Bluetooth stereo audio receiver, and you can plug it into our most amplifiers.
- Party mode(Multipoint): you can have multiple modules paired and work together. This makes it possible to build a wireless surround sound system.
How to Use:
TWS mode
- Power up the module and wait 1 second, module into pairing mode, Blue LED and Red LED flash alternately. (Voice: Pairing)
- Now, Your smartphone will be able to find a new Bluetooth device whose name is "TSA6179". Connect it.
- You can play the music now. If you only use one module as a normal receiver. You don't need do the following steps.
TWS connection
Master module:
- Long press S1, set the master module into TWS master mode.
Slave module:
- Power up the salve module, long press S2 to set module into TWS slave mode.
- The master module will automatically search (30s) slave module. Both master and slave module will be connected. (Voice: Pairing successful)
- Master module and slave module can play music now.
Party mode
- Power up the module and double click S1, module into pairing mode (Voice: Pairing, LED: Blue LED fast blink).
- Now, your smartphone will be able to find a new Bluetooth device whose name is "TSA6179". Connect it.
- You can play the music now. If you only use one module as a normal audio receiver. You don't need do the following steps.
Multipoint connection
Master module:
- Click S1, set the master module to transmitter mode (Voice: broadcast mode, LED: Red LED on).
Slave module:
- Power up the slave module, click S2 to set module into receiver mode (Voice: broadcast audio enable, LED: Green LED on).
- Double click S2 on the master module, double click S2 on the slave module. The master module will automatically search (30s) slave module.
- Both master and slave module will be connected, then both master module and slave module can play music now.
- If there is a new board to join as a module, just click S2 to set new module to receiver mode then double click S2 on the master module.
- If a slave board want to quit, click S1 to switch that module to transmitter mode or normal mode.
Features:
- Bluetooth 5.0
- Multipoint connection
- Qualcomm cVc audio technology
- Qualcomm TrueWireless Technology
- Stereo receive
- Effective transmission distance: 50-100m
Documents:
- How to change the BT name
- Bluesuite3.3
- ADK_QCC512X_QCC302X_WIN_6.4.2.26
- Firmware(TWS)
- Firmware(Party mode)
- TWS firmware with Pairing PIN (default PIN: 1234)
- How to enable the pairing PIN
