Programmable IoT Board - PHPoC Black
Price: $59.50

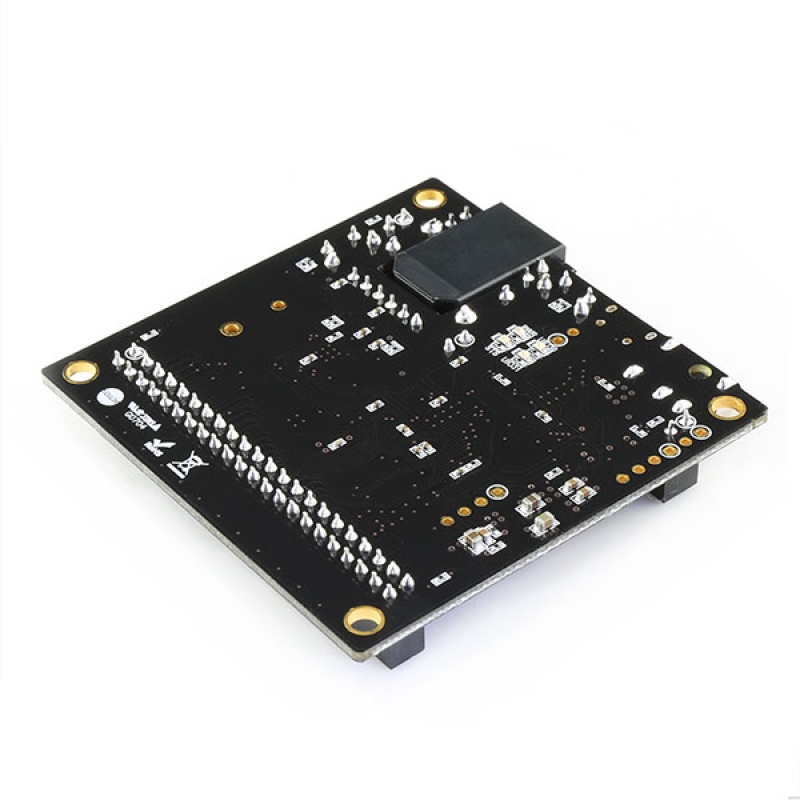

PHPoC Black (P4S-341) is a wired LAN programmable board embedded with a PHPoC interpreter. It supports various interfaces to connect with sensors and equipment. With PHPoC Black, you can monitor and control your equipment from a remote site via web browser. Also, it is designed to be stackable for you to implement additional functions with PHPoC expansion boards.
Specification:
| Processor | Core | Cortex-M4 168MHz |
| Flash | System-512K Bytes, User-512K Bytes | |
| SRAM | 192K Bytes | |
| Power | Input 1 | DC 5V(±0.5V) |
| Input 2 | DC 5V(±0.5V) - USB Device Port | |
|
Current Consumption |
Typical - about 110mA Power Down mode - less than 200uA |
|
| Interface | UART |
2 x UART Ports (UART0 ~ 1), Baudrate: 1,200bps ～ 46,800bps |
| Network | 10/100Mbps Ethernet | |
| USB |
USB Host - DM and DP USB Device - for PC |
|
| Digital I/O | UIO0: pin #0 ~ #19, #30(LED), #31(LED) | |
| Analog Input | ADC_CH0 ~ 5, AREF, 12-bit resolution | |
| Hardware Timer(HT) | HT0 ~ 3, toggle/pulse/pwm output and capture mode | |
| SPI | NSS, SCK, MISO, MOSI | |
| I2C | SCL, SDA | |
| Internal Battery | 3V | |
| Firmware | PHPoC Interpreter | |
| Software | PHPoC Debugger | |
| Dimension | 66.5mm x 63.8mm x 13mm | |
| Weight | about 29.8g | |
| Temperature | Storage/Operating | -20℃ ~ 60℃ |
| Environment | RoHS Compliant | |
Features:
- PHPoC (PHP on Chip) interpreter embedded
- Uploading and debugging codes via USB
- 10Base-T/100Base-TX Ethernet (RJ45)
- 8 x digital input/output port
- 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
- 6 x analogue input port
- HTTP/SSH/Websocket server
- Web page customization available (accessible with smart devices)
