2 x 20W Bluetooth 5.0 Multipoint Audio Amplifier Board - TSA2300
20 or more $30.00
TSA2300 is a 2x20W Stereo Bluetooth 5 multipoint audio amplifier board. It has perfect class-D architecture(Based on MAX98400A) and each channel has 20W power output. Both of channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC10V-24V power supply. It can be used to drive two 8Ω passive speakers.
The highlight point is BT 5 integrated. You can have many TSA2300 boards paired and work together. TSA2300 can remember the pairing info. You don't need pair them each time you turn the amplifier board on. This makes it possible to build a wireless surround sound system by using the TSA2300.
If you only use one TSA2300. It can work as a common Bluetooth amplifier board. Power the amplifier board. Double click PAIR button to set the board into Pairing mode. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appears as "TSA2300". You don't need a PIN, pair it and then you can play music.

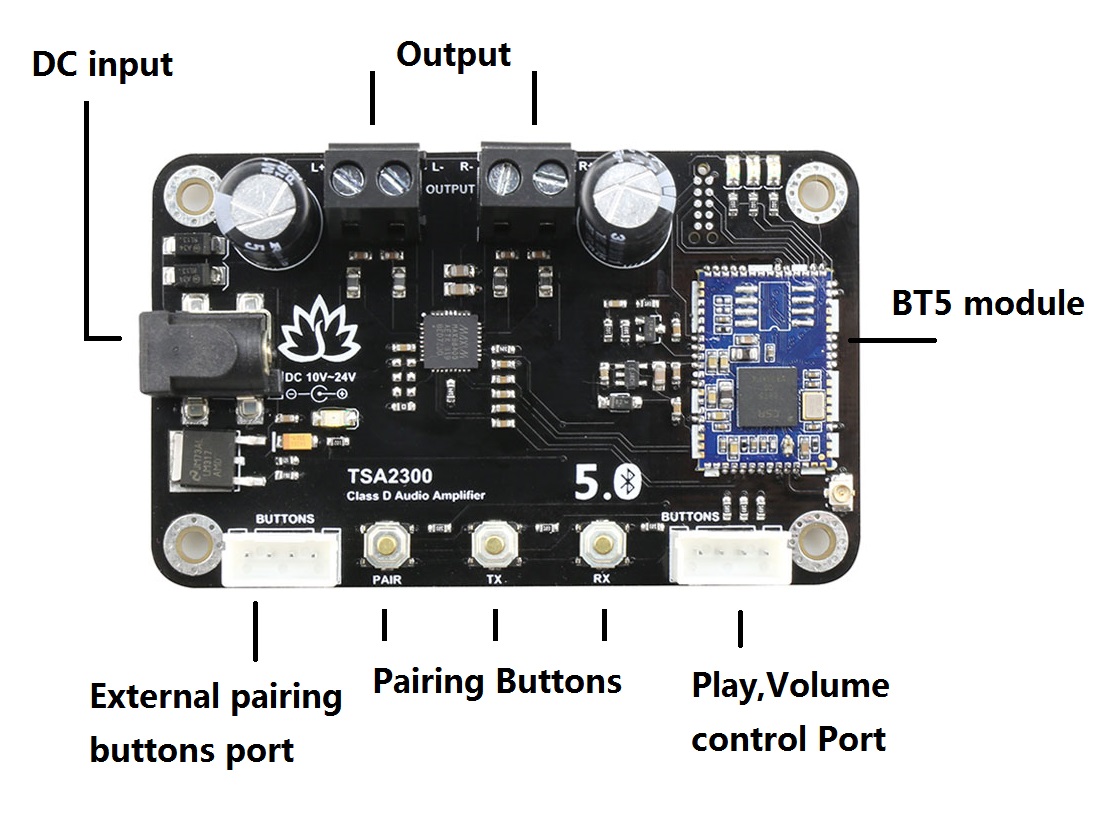

Pairing buttons:
- PAIR - Double click into pairing mode.
- TX - Click into transimitter mode.
- RX - Click into receiver mode.
External Pairing buttons Port: Connect external buttons to control the PAIR/TX/RX.
Play,Volume control Port: Connect external buttons to control the music Play/Pause, Volume+, Volume-.
One board works like a normal Bluetooth amplifier
Multiple boards work together
How to Use:
Master board:
- Power up the TSA2300, Blue LED slow blink.
- Double click PAIR button to set the TSA2300 into Pairing mode. Blue LED fast blinks. (Voice: Pairing)
- Now, Your smartphone is able to find a new Bluetooth device whose name is "TSA2300". Connect it.
- You can play the music now. If you only use one amplifier board. You don't need do the following steps.
- Click TX button, Set the module to transmitter mode.(Voice: transmitter mode)
Slave board:
- Power up another TSA2300. Blue LED slow blinks.
- Make sure master board already worked correctly and in transmitter mode. Click RX button to set slave board into receiver mode. It will automatically search the master board. (Voice: receiver mode, searching)
- Double click the TX button on the Master board. The master board will automatically search (30s) slave board. Both master and slave board will be connected. (Voice: searching)
- The slave board can play music now.
- If there is a new board to join as slave board, just click RX on new module and Double click on Master module.
- If a slave board wants to quit, click TX button on that module.
Note: If you don't hear the voice prompt when clicking TX, please click the RX to switch the mode and then click TX again.
Specification:
Following table lists all typical data of the Amp board. For full specification, please refer to the data sheet of MAX98400A chip.TA = 25℃, fin = 1 kHz sine wave, RL = ∞, VVS = 18V. (Unless otherwise stated)
|
Parameter |
Condition |
Min |
Typ |
Max |
|
Supply Voltage (VDC) |
Inferred from PSRR test |
10 |
- | 24 |
| Current Limit | 3.5A | 5A | - | |
| Bandwidth @ ±3dB | @8Ω | 20Hz | - | 22KHz |
| Efficiency |
PO = 2X20W, MAX98400A, |
- | 90% | - |
|
Minimum Load Impedance |
|
8Ω | ||
|
Switching Frequency |
|
265KHZ | 330KHZ | 295KHZ |
| Gain | 9dB | 20.1dB | 29.8dB | |
|
Input Sensitivity(RMS) |
- |
- | 620mV | - |
|
Input Impedance |
- | - | 22KΩ | - |
|
Output Power |
Stereo,RL = 8Ω,THD+N 10% |
- | 22W | - |
|
Mono, RL = 4Ω,THD+N 10% |
- | 44W | - | |
|
THD+N |
POUT=0.1W to POUT/2, fIN= 20Hz to 20kHz, RL= 8Ω |
- |
0.3% |
- |
|
POUT/2, fIN=1kHz, RL= 8Ω |
- |
0.03% |
- |
Features:
- Size: 80*49*20mm
- Multipoint connection
- Bluetooth 5.0
- Upto 100 boards can be linked together.
-
Qualcomm cVc audio technology
-
Qualcomm TrueWireless Technology
- Stereo receive
- Effective transmission distance: 10-15m
- Compatible with all Bluetooth devices that support media audio, including iPhone
