TSA6180 - Bluetooth 5.1 Audio Receiver
20 or more $40.00
The TinySine TSA6180 Bluetooth audio receiver allows for wireless connectivity without sacrificing audio quality. It receives Bluetooth signals wirelessly, then routes the audio to balanced XLR or analog stereo RCA or digital coaxial for integration with mixers and amplification systems. Its Bluetooth Pairing mode ensures a secure connection.

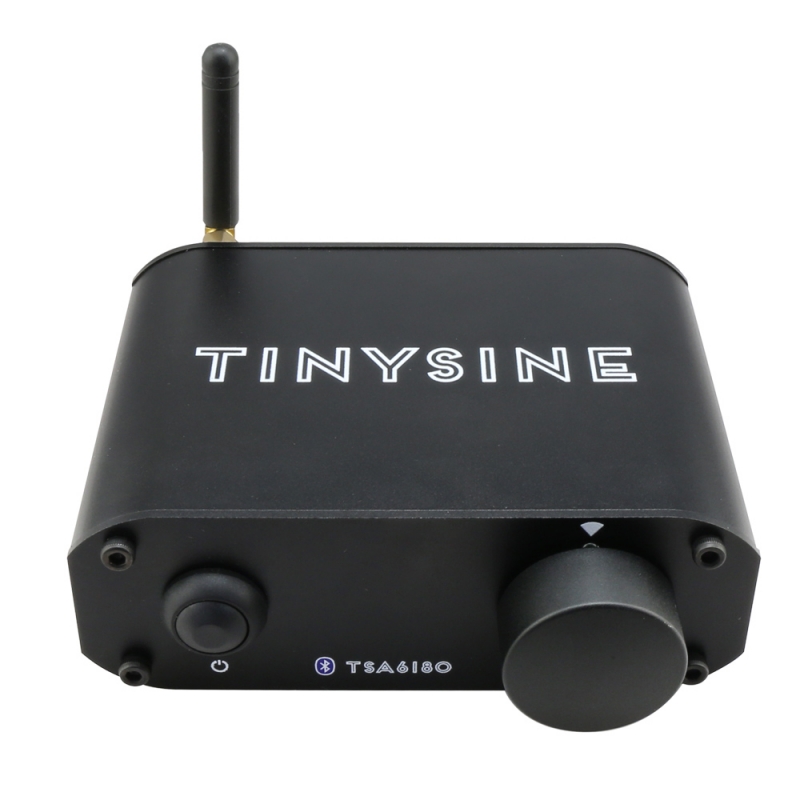

This audio receiver can be powered by any DC5V power supply. There is one button and a knob on the front panel. The button is for power on/off. When you use the volume knob to adjust the audio volume, it will also automatically synchronize volume with your iPhone. The volume knob is a pairing button too. Long press 5 seconds make the receiver into pairing mode.
- Rotate the knob to adjust the audio volume
- Press the volume knob 3 seconds make the receiver into pairing mode/disconnect the Bluetooth connection.
How to use?
- Connect DC5V power supply to the TSA6180 and press the power button. Power indicator LED will slow blink.
- Connect TSA6180 to your amplification system.
- Press volume knob > 3 seconds. LED fast blink.
- You will find a new Bluetooth device named "TSA6180" in your Smartphone Bluetooth device list. Connect it. LED solid on.
- You can play music now.
Specification:
- Bluetooth version: 5.1
- Output: Stereo RCA, coaxial, Balanced XLR
- Codec support: aptX, aptX-HD, SBC and AAC
- Sample rate: 16-24-bit/44.1-48 kHz (coax)
- Frequency response: 20 - 20,000 Hz
- SNR: 90 dB
- Dimension: 12cm x 10cm x 4cm
- Weight: 420g
- Working voltage: DC5V/1A
- Effective transmission distance: 80-100m
